Slide-Loc
US 1/4-20 Quick Release Lever (Fastener, Latch)
- 10 levers — 5% off
- 20 levers — 10% off
- 100 levers — 20% off
Designed and produced by Slide-Loc LLC.

Slide-Loc
Designed and produced by Slide-Loc LLC.
Drawings
Measurements

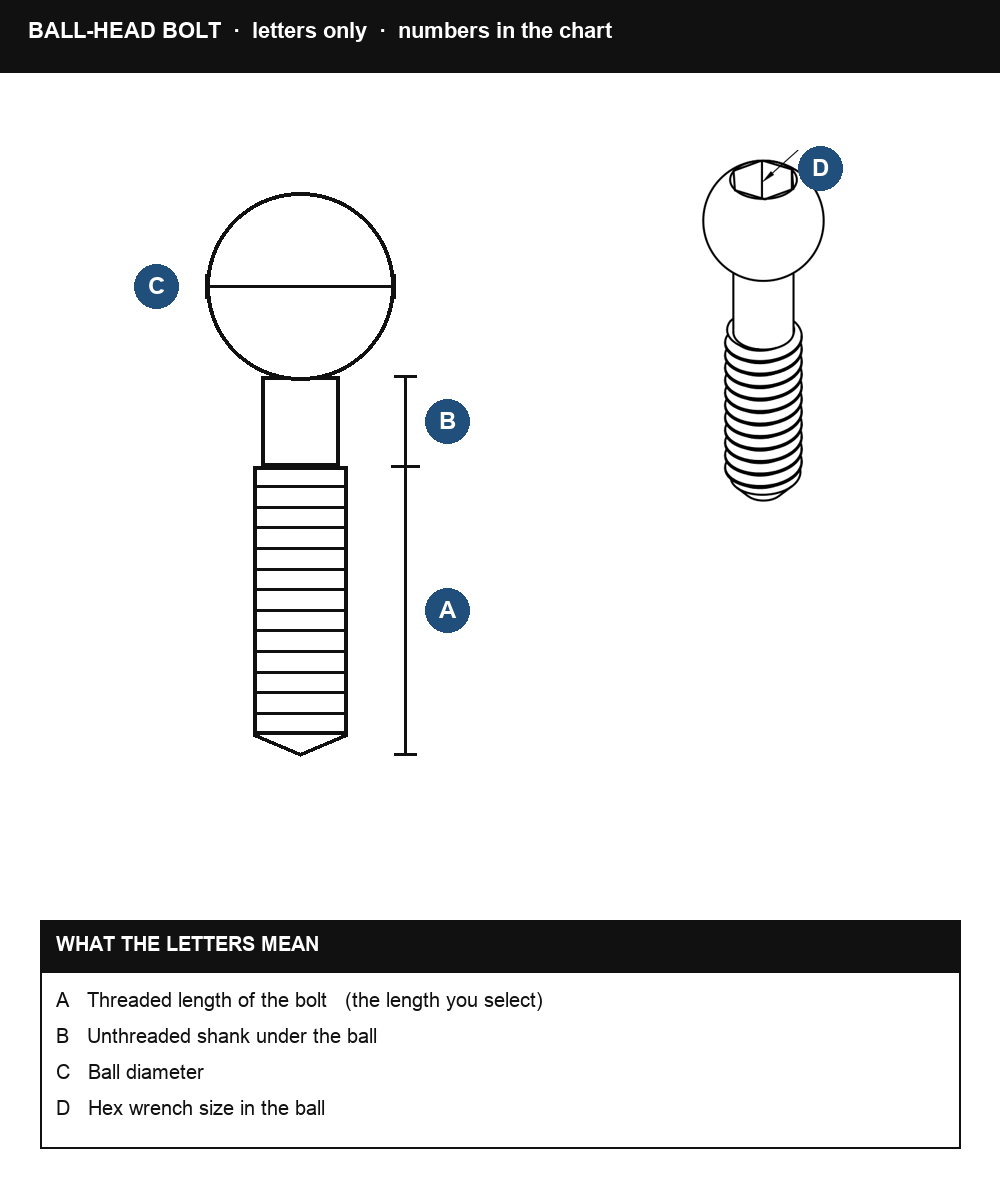

A = threaded length. B = shank. C = ball diameter. D = hex wrench in the ball.
UPC 747492593138 (SS) · 641837474598 (Ti)
Thread. 1/4-20 UNC Coarse Thread (Standard)
| Bolt length | A | B | C | D |
|---|---|---|---|---|
| A = threaded length · B = shank · C = ball diameter · D = hex wrench | ||||
| 7 mm | 7.0 mm | 7.0 mm | 10.0 mm | 3/16 in |
| 13 mm | 13.0 mm | 7.0 mm | 10.0 mm | 3/16 in |
| 20 mm | 20.0 mm | 7.0 mm | 10.0 mm | 3/16 in |
| 26 mm | 26.0 mm | 7.0 mm | 10.0 mm | 3/16 in |
| 38 mm | 38.0 mm | 7.0 mm | 10.0 mm | 3/16 in |
| 45 mm | 45.0 mm | 7.0 mm | 10.0 mm | 3/16 in |
| 51 mm | 51.0 mm | 7.0 mm | 10.0 mm | 3/16 in |
| 77 mm | 77.0 mm | 7.0 mm | 10.0 mm | 3/16 in |
Videos
Product shots



A cam-style quick-release lever and matching ball-head bolt. Flip the lever to clamp. Flip it back to release. It replaces thumbscrews, wingnuts, and knobs on lids, panels, and equipment.
US 1/4-20, M5, M6, M8, and M10. They fit existing holes. No new hole pattern is required. Lengths vary by diameter. See the size chart on this page.
Measure the stack you are clamping. The start of the thread should sit flush with the top of that stack. Threads must reach far enough to engage the base. Pick dimension A from the chart.
The bolt stretches instead of twisting. You get the same force every time without swollen nylon or a second wrench.
Rapid release and clamping, while also repeating the same clamping force you previously set.
No. Each listing is one lever and one matching bolt.
316 stainless on all sizes. Titanium is available on 1/4-20 in 7 mm and 20 mm. The lever body is anodized aluminum. Threads are coarse (standard): 1/4-20 UNC, M5 x 0.8, M6 x 1.0, M8 x 1.25, M10 x 1.5.
316 stainless is the marine grade we sell for wet and outdoor use. Rinse hardware if it sits in salt spray.
3/16 in. That is dimension D on the bolt drawing.
Bolt tensile strength (ASTM F606 / F606M-21): 18.30 kN / 4,110 lbf. Lever body (ADC): 17.52 kN / 3,940 lbf.
Bulkheads, removable racks, concrete forms, mold clamps, workbench clamps, steam oven doors, squeegee and broom handles, and other industrial applications.
Reviews
2 published Kudobuzz reviews (4 and 5 star) for the 1/4-20 lever. Original names and dates. We do not write these.
★★★★★ 5.0 / 5 · 2 reviews
★★★★★
Great so far. I modified the m6 ball to fit through a telescope mount. Now I enjoy the quick release rather then the factory thumb screws. Thanks again
Brian Hess · Verified buyer · US 1/4-20 Quick Release Lever · 2023-03-03
★★★★★
Innovative product! Retrofit wass super easy and came out great, highly recommended if you struggle with thumbscrews!
dan lichens · Verified buyer · US 1/4-20 Quick Release Lever · 2022-10-18
